Apply EKIO Theme to ggplot2 Plots

Source: R/theme.R
theme_ekio.Rd

A minimal, professional theme for EKIO visualizations built on ggplot2::theme_minimal().

Usage

theme_ekio(
  base_size = 11,
  font_title = "Lora",
  font_text = "Lato",
  title_align = "plot",
  grid = "y",
  ticks = "x",
  background = "offwhite",
  ...
)

Arguments

base_size

Numeric. Base font size in points (default: 11).

font_title

Character. Font family passed only to the chart title. Defaults to 'Lora'.

font_text

Character. Font family passed to all textual elements except the title. Defaults to 'Lato'.

title_align

Argument passed to ggplot2::theme(). Can be one of 'plot' or 'panel'.

grid

Character. Which major grid lines to show: "y" (default), "x", "xy", or "none". Only the requested grid themes are added.

ticks

Character. Which axis ticks and lines to show: "x" (default), "y", "xy", or "none". This is independent of grid.

background

Character. Plot and panel background: "offwhite" (default, #FBFBF6, a warm white), "white" (#FFFFFF), "cold" (#F6F7F8), or "transparent". A hex code such as "#F0EAD6" is also accepted, though only the named surfaces are checked for contrast against the brand scales.

...

Additional arguments passed to ggplot2::theme_minimal().

Value

A ggplot2 theme object

See also

ekio_surface()

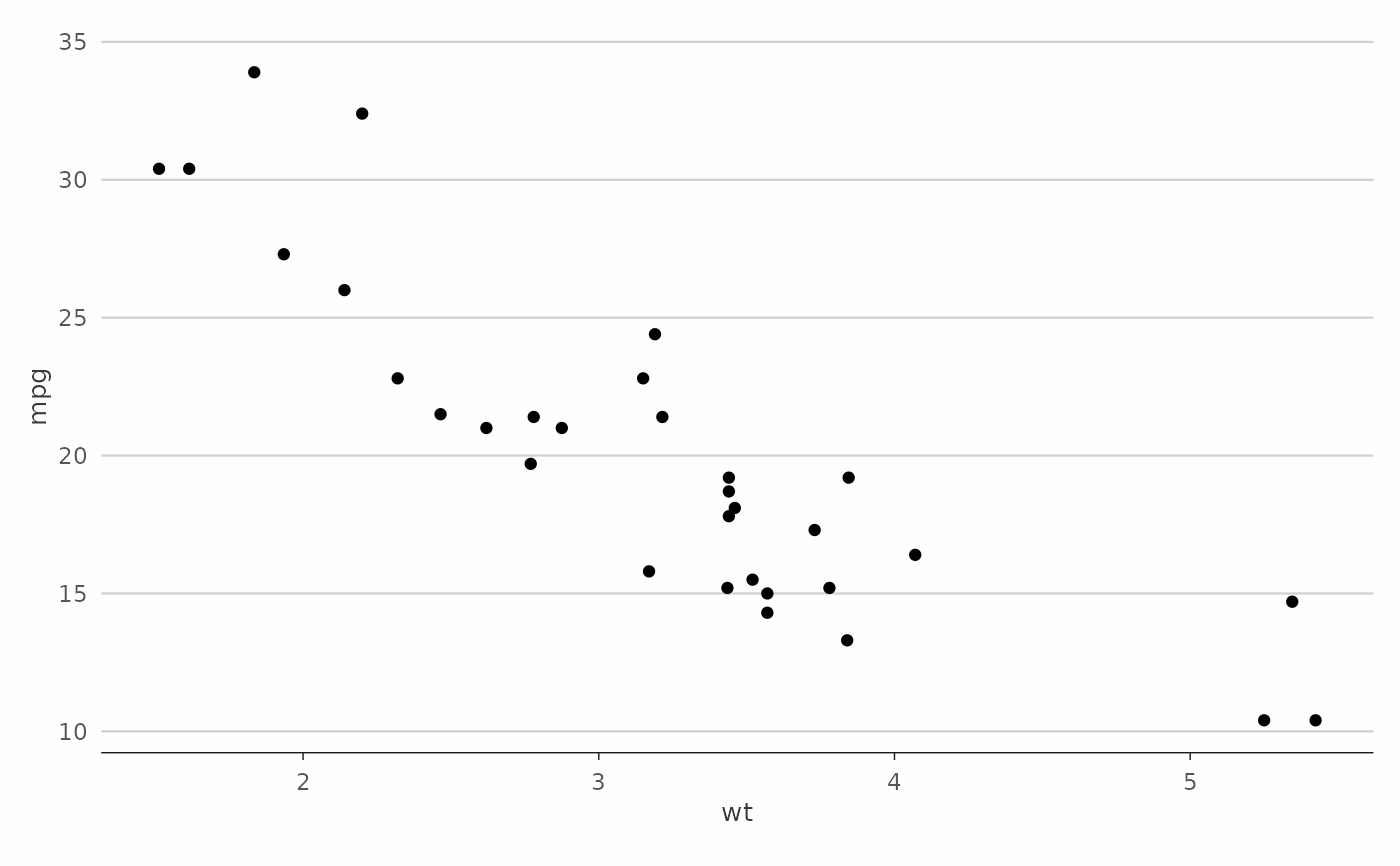

Examples

ggplot2::ggplot(mtcars, ggplot2::aes(wt, mpg)) +
  ggplot2::geom_point() +
  theme_ekio(font_title = "serif", font_text = "sans")
