EKIO Scatter Plot — ekio_scatterplot • ekioplot

Professional scatter plot with smart aesthetic detection.

Usage

ekio_scatterplot(
  data,
  x,
  y,
  color = NULL,
  size = NULL,
  palette = NULL,
  add_zero = FALSE,
  add_smooth = FALSE,
  smooth_method = "lm",
  point_size = 2.5,
  point_alpha = 0.8,
  title = NULL,
  subtitle = NULL,
  caption = NULL,
  ...
)

Arguments

data: A data frame
x: X-axis variable (supports data-masking)
y: Y-axis variable (supports data-masking)
color: Color aesthetic. A color string or a variable. A continuous variable warns and uses a sequential ramp.
size: Size aesthetic (optional variable)
palette: Character. Palette name for variable mappings.
add_zero: Logical. Add horizontal line at y=0 (default: FALSE)
add_smooth: Logical. Add smooth trend line (default: FALSE)
smooth_method: Smoothing method: "lm", "gam", "loess" (default: "lm")
point_size: Base point size (default: 2.5)
point_alpha: Point transparency (default: 0.8)
title, subtitle, caption: Plot labels. NULL (default) draws none.
...: Additional arguments passed to ggplot2::geom_point(). These override the recipe's own geom defaults.

Value

ggplot2 object

Examples

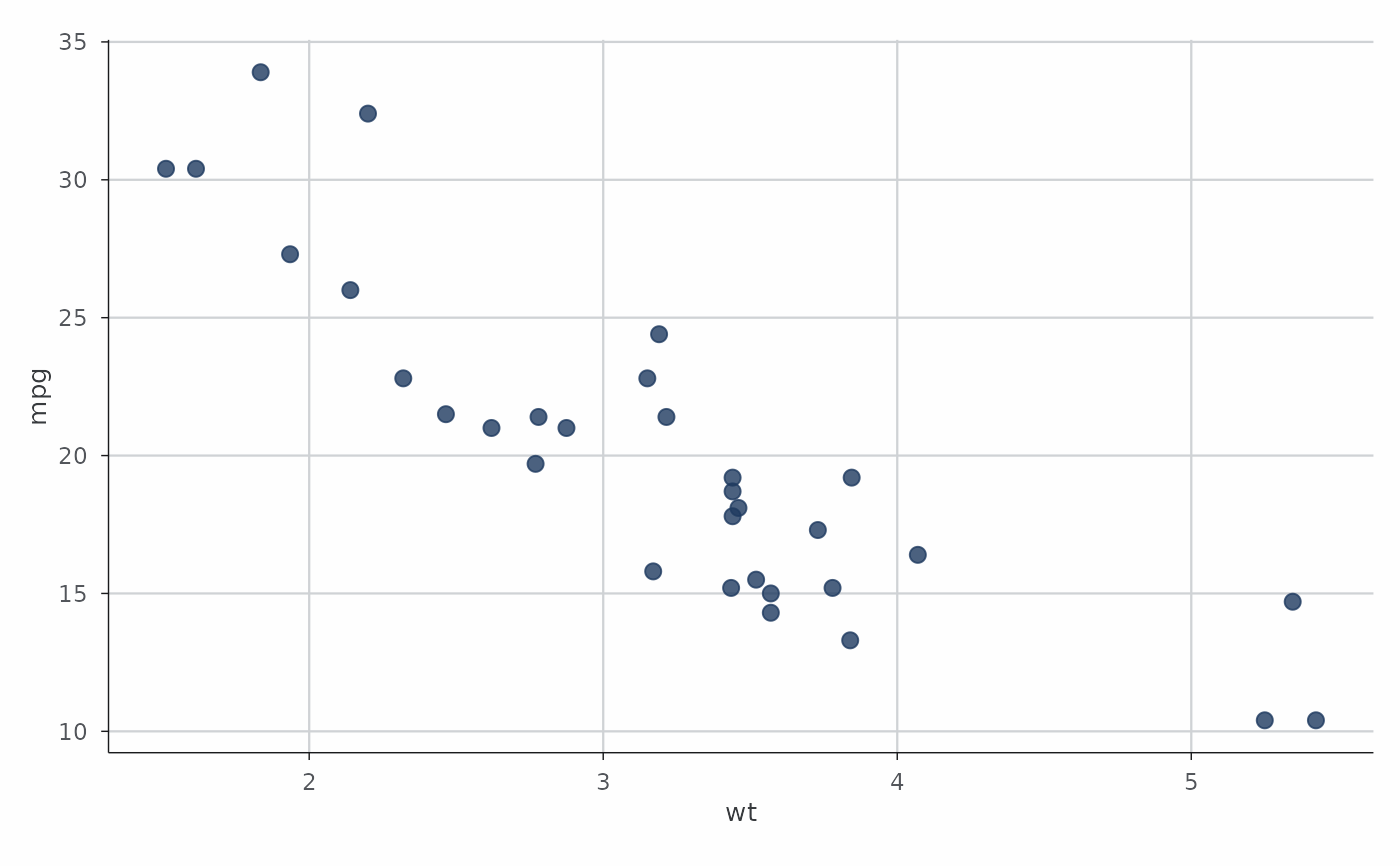

ekio_scatterplot(mtcars, wt, mpg)

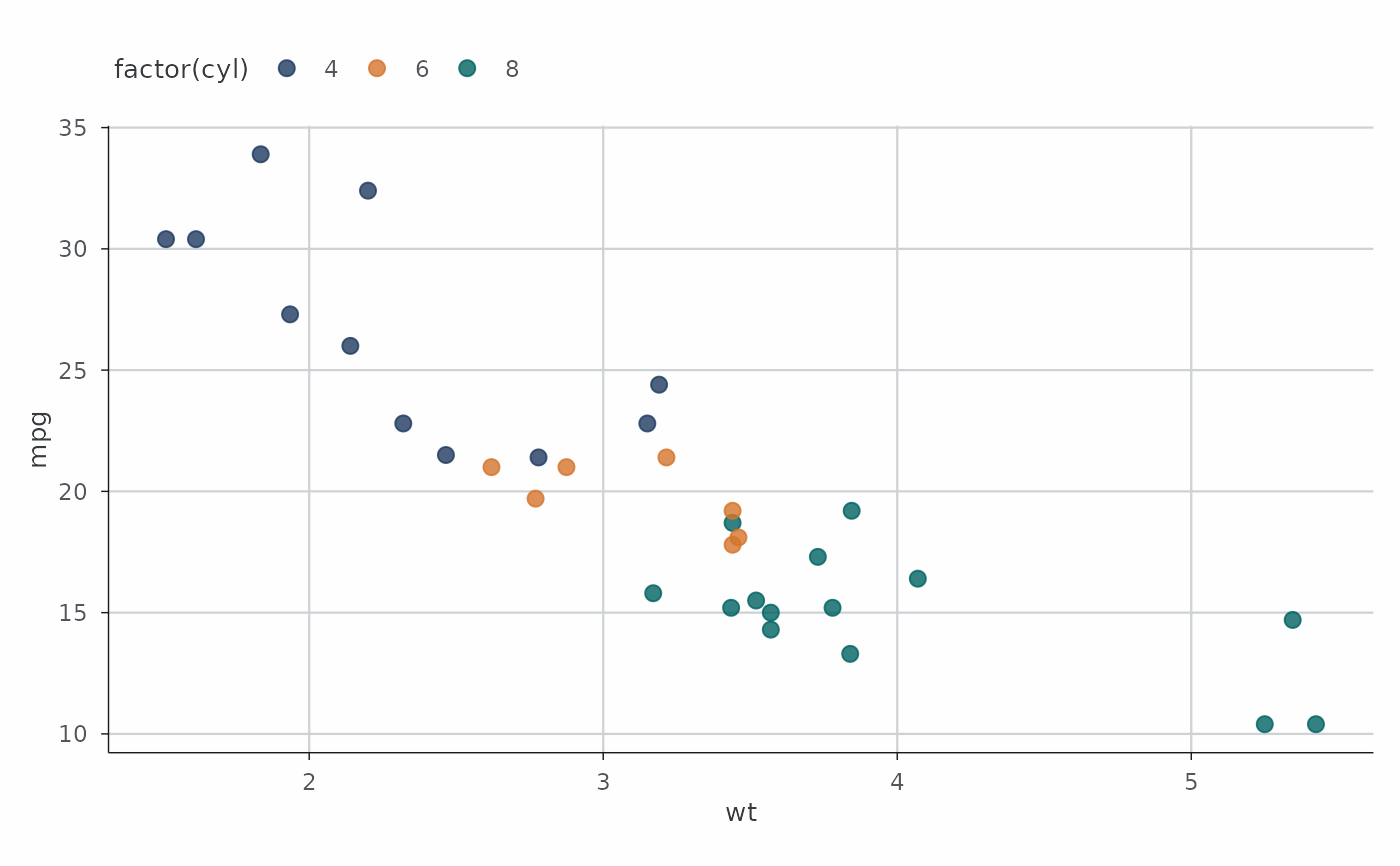

ekio_scatterplot(mtcars, wt, mpg, color = factor(cyl))
