Professional area plot with smart aesthetic detection. Supports stacked and filled (proportional) area charts.
Usage
ekio_areaplot(
data,
x,
y,
fill = NULL,
palette = NULL,
position = "stack",
alpha = 1,
title = NULL,
subtitle = NULL,
caption = NULL,
...
)Arguments
- data
A data frame
- x
X-axis variable (supports data-masking)
- y
Y-axis variable (supports data-masking)
- fill
Fill aesthetic. A color string or a discrete variable. A continuous variable is an error: bin it or wrap it in
factor().- palette
Character. Palette name for variable mappings.
- position
Character. Stacking method:
"stack"(default) or"fill"for proportional areas.- alpha
Numeric. Fill transparency (default: 1).
- title, subtitle, caption
Plot labels. NULL (default) draws none.
- ...
Additional arguments passed to
ggplot2::geom_area(). These override the recipe's own geom defaults.
Examples

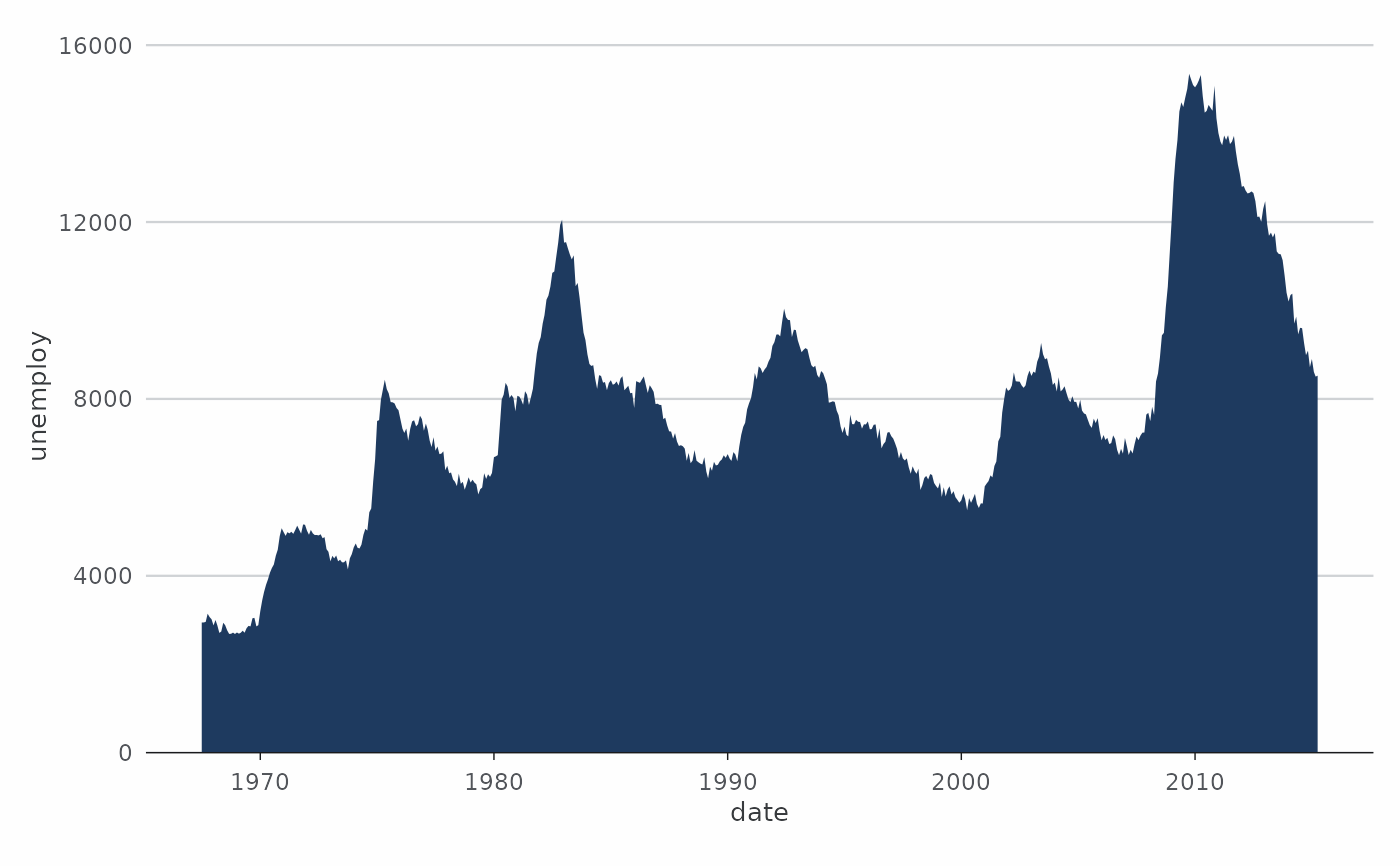

ekio_areaplot(ggplot2::economics, date, unemploy)

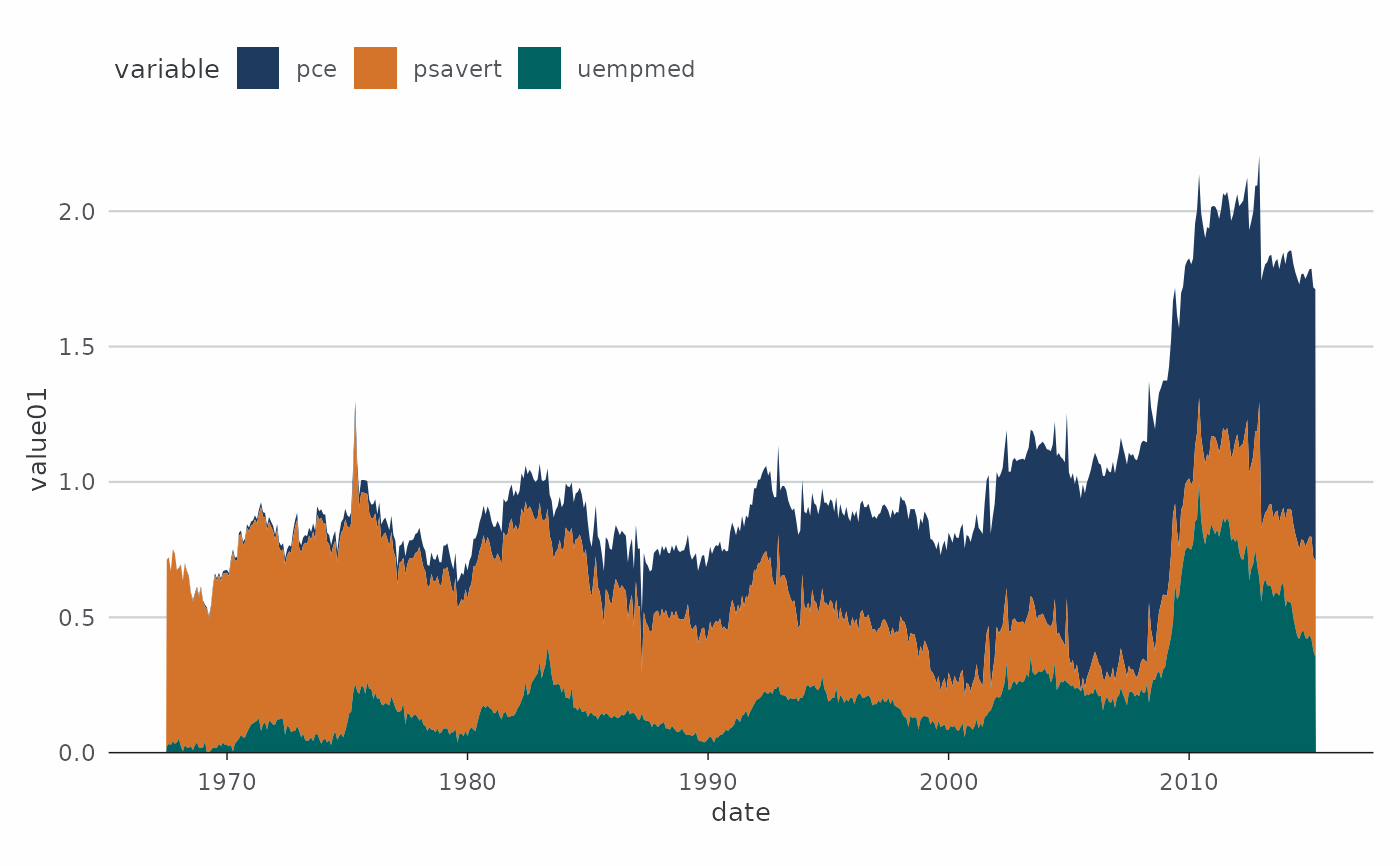

# Stacked area with normalized economic series
economic_series <- subset(
ggplot2::economics_long,
variable %in% c("pce", "psavert", "uempmed")
)
ekio_areaplot(economic_series, date, value01, fill = variable)
