A theme for Benvi styled plots

A ggplot2 base theme for Benvi styled plots.

The Poppins font is bundled with the package and registered automatically on load when systemfonts is installed. When both systemfonts and ragg are available, the theme uses Poppins by default. Otherwise it falls back to the system's default sans-serif font.

Registered fonts only work with systemfonts-aware devices (e.g. ragg::agg_png). Base R devices (PDF, PostScript) cannot render them. If you see font warnings when saving to PDF, pass base_family = "sans" or set options(theme_benvi.font_family = "sans"). See font_status() to check your setup.

Usage

theme_benvi(
  base_family = getOption("theme_benvi.font_family", default_font_family()),
  base_size = 10,
  background = FALSE
)

Arguments

base_family

Argument passed to ggplot2::theme_minimal(). Defaults to "Poppins" when the bundled font is registered and ragg is available, "sans" otherwise. Override globally with options(theme_benvi.font_family = ...).

base_size

Argument passed to ggplot2::theme_minimal(). Defaults to 10.

background

Logical. Adds an offwhite (creme) background to the plot.

Value

A ggplot2 theme object

Examples

library(ggplot2)
series <- subset(iqaiw, name_muni == "S\u00e3o Paulo" & rooms == "Total")

# Base theme (using "sans" for portability)
ggplot(series, aes(date, index)) +
  geom_line(color = benvi_palette("benvi_blue")[1], lwd = 1) +
  labs(x = NULL, y = "Index (base = 100)", title = "IQAIW") +
  theme_benvi(base_family = "sans")

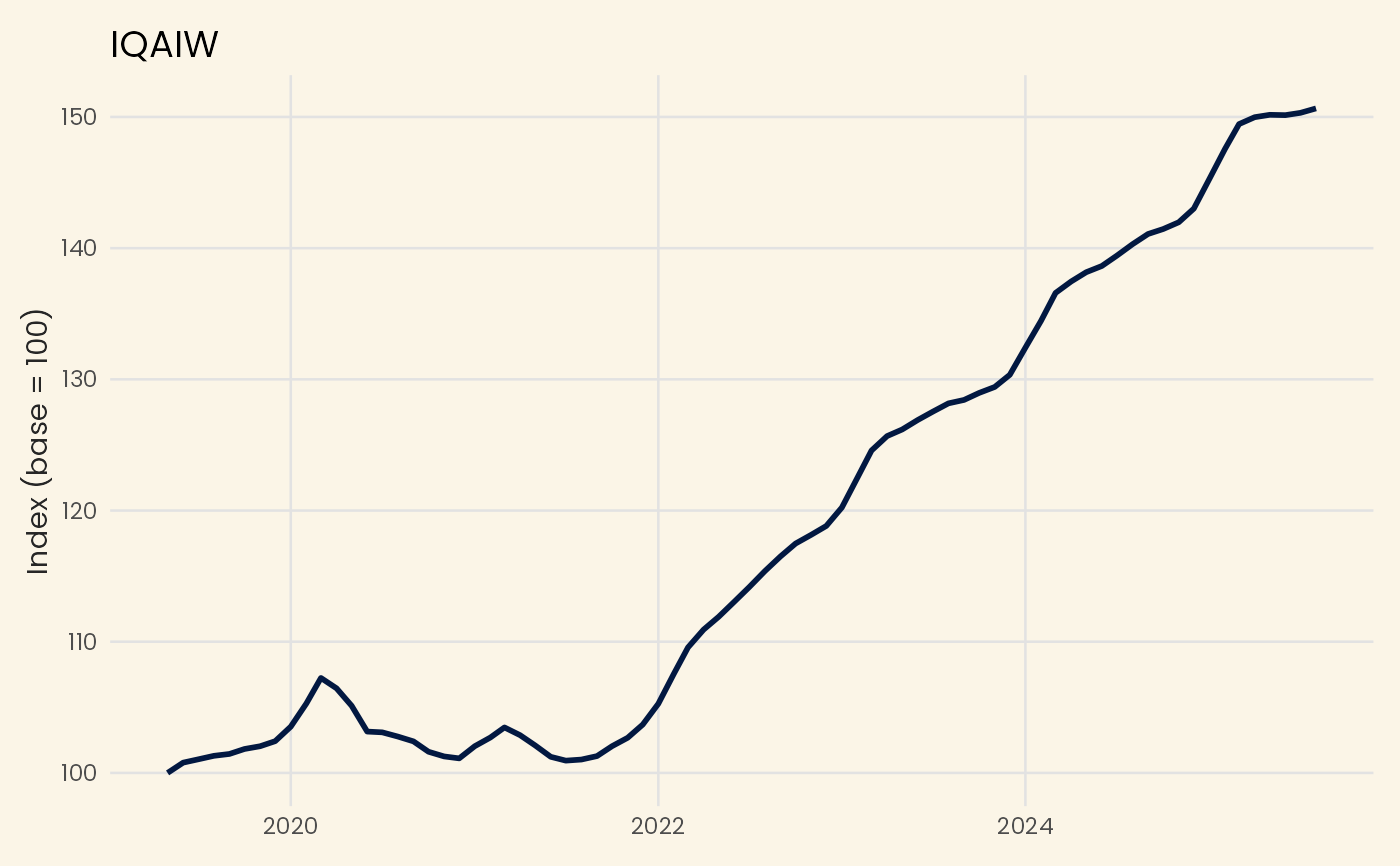

# Optional offwhite (creme) background
ggplot(series, aes(date, index)) +
  geom_line(color = benvi_palette("benvi_blue")[1], lwd = 1) +
  labs(x = NULL, y = "Index (base = 100)", title = "IQAIW") +
  theme_benvi(base_family = "sans", background = TRUE)


if (FALSE) { # \dontrun{
# Use Poppins with a ragg device (requires systemfonts and ragg)
ggplot(series, aes(date, index)) +
  geom_line(color = benvi_palette("benvi_blue")[1], lwd = 1) +
  labs(x = NULL, y = "Index (base = 100)", title = "IQAIW") +
  theme_benvi(base_family = "Poppins")
} # }
