DISCLAIMER: This is an unofficial, independent project created by Vinicius Oike and is NOT affiliated with, endorsed by, or connected to QuintoAndar in any way. Benvi was a former brand of QuintoAndar that was discontinued in 2024. This package uses publicly available color schemes from that period for data visualization purposes. See DISCLAIMER.md for details.

Overview

benviplot provides color palettes and ggplot2 helpers for creating high quality graphics. The package includes:

  • Color Palettes: curated color schemes (Set, Qualitative, Sequential palettes).
  • ggplot2 Scales: discrete and continuous scales for seamless ggplot2 integration.
  • Plot Helpers: wrapper functions for common visualizations.
  • Custom Theme: clean, professional theme with Poppins font support.

Installation

You can install benviplot from GitHub.

# Install remotes if needed
# install.packages("remotes")

# Install benviplot from GitHub
remotes::install_github("viniciusoike/benviplot")

Usage

Load the package along with ggplot2.

Color palettes

Color palettes can be visualized using benvi_palette. The default palette is “qual_2”.

# Default palette (qual_2)
benvi_palette()

Colors follow Benvi reports guidelines that are tailored for specific cities.

# Specify a different palette
benvi_palette("rio_qual")

Plotting

To use the colors in plots use one of the scale_*_benvi_* functions.

  • scale_color_benvi_d
  • scale_color_benvi_c
  • scale_fill_benvi_c
  • scale_fill_benvi_d

The pacakge also supplies a generic theme_benvi() function that works best if Poppins is available.

ggplot(mtcars, aes(x = wt, y = mpg, color = as.factor(cyl))) +
  geom_point(size = 2, alpha = 0.8) +
  geom_smooth(color = benvi_palette("seq_oranges")[1], se = FALSE) +
  scale_color_benvi_d(pal_name = "qual_9", name = "Cylinders") +
  labs(
    title = "A Benvi styled plot",
    subtitle = "Fontface is defined as Poppins using showtext",
    x = "Weight (tons)",
    y = "Miles per gallon",
    caption = "Poppins font is downloaded using sysfonts::font_add_google or locally.") +
  theme_benvi()
#> `geom_smooth()` using method = 'loess' and formula = 'y ~ x'

When using a continuous scale the colors are interpolated.

housing <- subset(txhousing, city %in% c("Austin", "Houston", "Dallas"))

ggplot(housing, aes(x = date, y = city, fill = median / 1e3)) +
  geom_tile(height = 0.8) +
  scale_fill_benvi_c(pal_name = "greens", name = "Median House\nPrice (thous. $)") +
  scale_x_continuous(expand = expansion(0)) +
  labs(x = NULL, y = NULL) +
  theme_benvi() +
  theme(
    legend.title = element_text(hjust = 0.5, vjust = 0.75),
    axis.text = element_text(size = 12),
    panel.grid = element_blank()
    )

Finally, the package features some generic plot_ functions that help to create standard plots. These functions aim to be efficient, allowing for quick data exploration, while remaining polished enough to be used for reports.

plot_line(economics, x = date, y = uempmed)

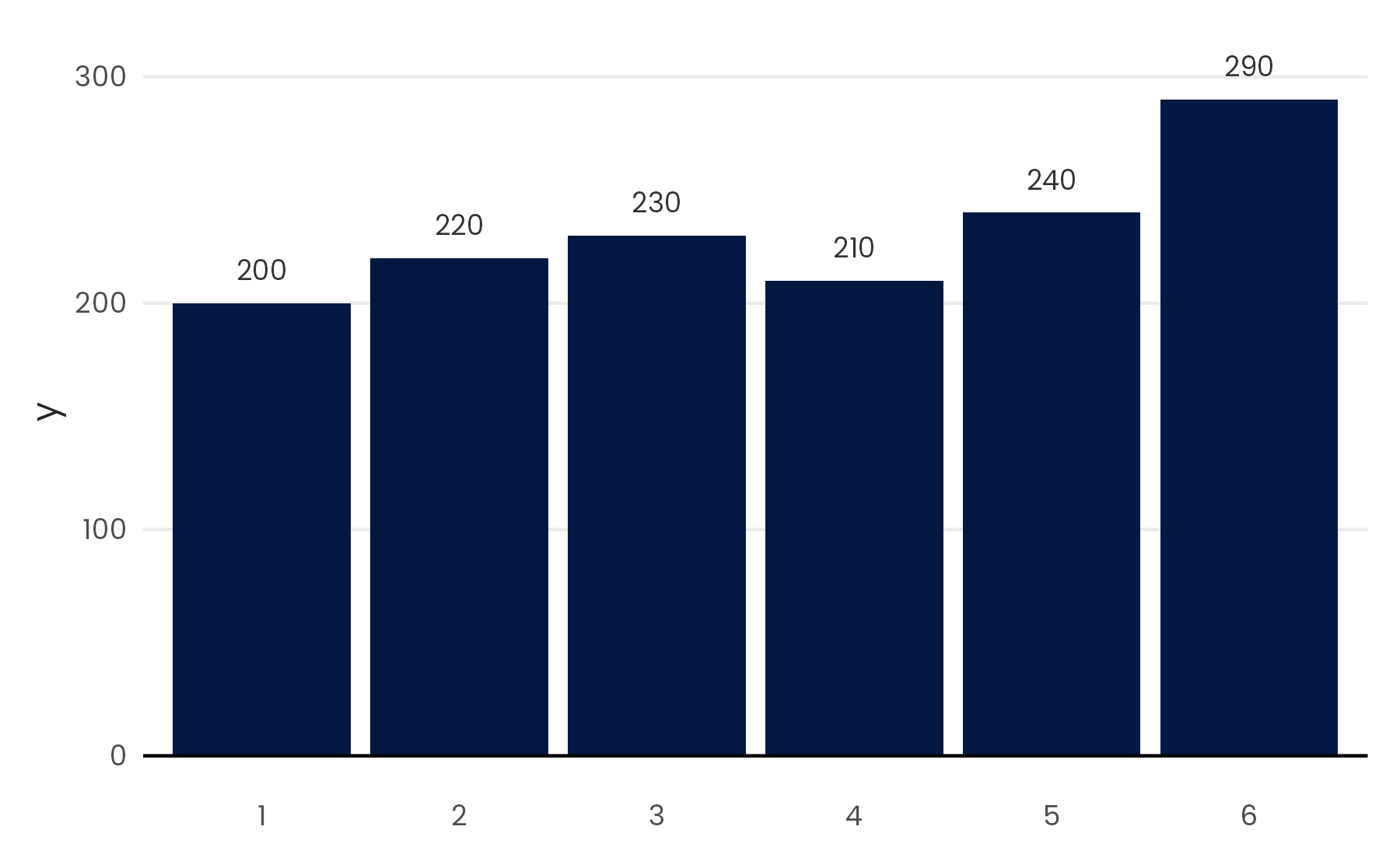

These functions usually include simple helper arguments like text in the case of plot_column that plots its value above the column.

sales <- data.frame(
  x = factor(c(1, 2, 3, 4, 5, 6)),
  y = c(200, 220, 230, 210, 240, 290)
)

plot_column(sales, x = x, y = y, text = TRUE)

The final example shows the variable argument which replaces the aes(fill = ...) or aes(color = ...) in each function.

plot_scatter(
  mtcars, wt, mpg,
  variable = as.factor(cyl),
  fit = TRUE,
  fit_method = "auto",
  scale_name = "Cylinders")
#> `geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Available Palettes

The package includes several palette families:

  • Theme Palettes (grays, browns, yellows, greens, blues, purples, pinks, oranges): 4-color palettes for basic visualizations
  • Qualitative Palettes (qual_1 through qual_9): 8-color palettes for categorical data
  • Sequential Palettes (seq_grays, seq_browns, etc.): 9-color gradients for continuous data
  • City-specific: Special palettes for São Paulo, Rio, and Belo Horizonte (spo_, rio_, bhe_*)
  • Brand Colors: Specialized color scales (benvi_blue, benvi_purple, basic)

View all available palettes by calling benvi_palette() with different palette names, or use list_palettes() to see all options.

Fonts

The package uses the Poppins font from Google Fonts. On first use, the package will automatically download the font. An internet connection is required for initial setup.

If you encounter font issues, manually import/download fonts.

# Usually works
benviplot::import_fonts()
# But, the only fail-proof option is to download and install locally
# https://fonts.google.com

Getting Help

License

MIT License. See LICENSE.md for details.

Acknowledgments

This package uses color schemes inspired by the discontinued Benvi brand. This is an independent project not affiliated with QuintoAndar.
